HAPPY BM

BAIN-MARIE HEATING

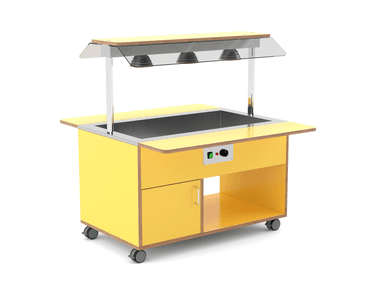

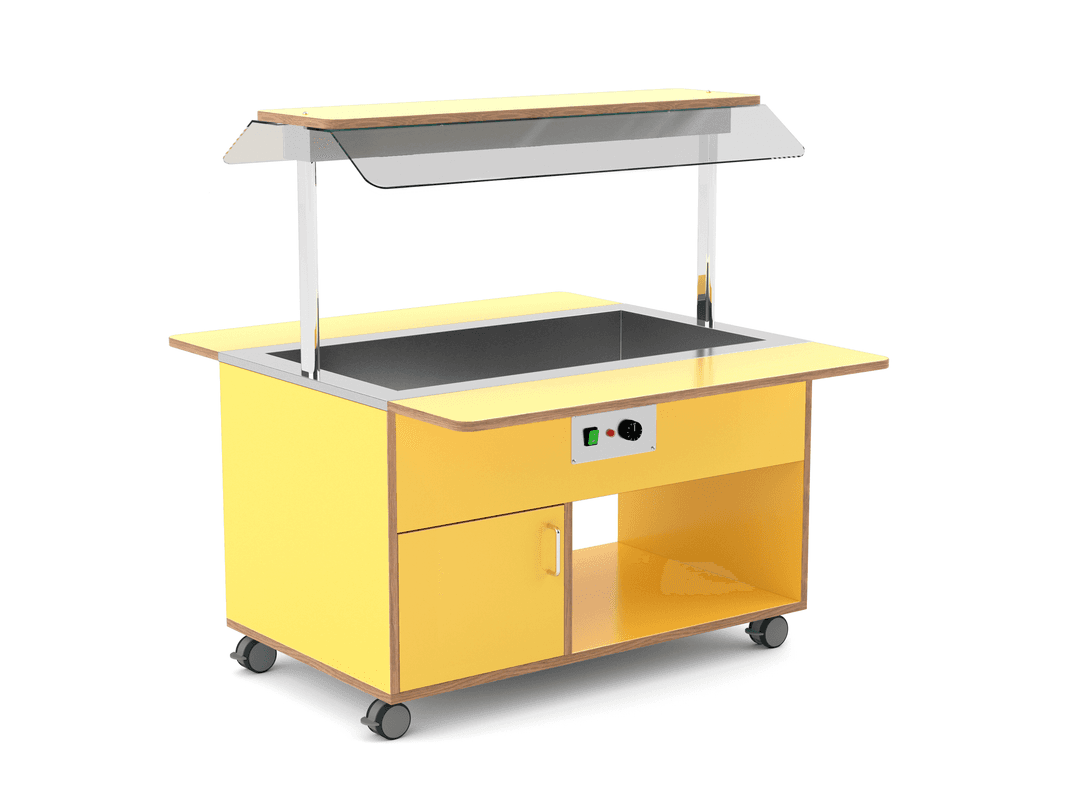

Bainmarie heated buffet for schools and family hotels with LED or infrared upper lighting, structure in laminated wood, available in the colors of our range with contrasting edges. Equipped by fix Plexyglass® sneezeguard and two front/back folding plate-holders as standard. 2 Heights for the worktop: 70cm or 50 cm to make their usage easy for the yougest. Sneezeguards and dish-holders have rounded angles for greater safety. Well 18 cm. deep with drain cock, size 3-4-5-6 GN 1/1.
Heating reguulated by a mechanical thermostat (+30°/+90°C) and operating lighting light. The control panel can be equipped with a security door to protect the buttons (OPT. 11-HA). Base with rounded edges and bumpers. Castors Ø 75 mm, 2 with brake included.

Measure / Capacity

Variants

Panelling

‌

Technical data

technical data

HAPPY 3

HAPPY 4

HAPPY 5

HAPPY 6

GN capacity

3

4

5

6

External dimensions (mm)

1109 x 654 x 1218

1434 x 654 x 1218

1759 x 654 x 1218

2084 x 654 x 1218

Net Weight (kg)*

100

112

124

136

Packing size (cm)

135 x 92 x 185h

155 x 92 x 185h

185 x 92 x 185h

220 x 92 x 185h

Operating temperature (°C)

0 / +90

0 / +90

0 / +90

0 / +90

Power consumption (Watt)

2263 / 1950 INFRA

2270 / 2100 INFRA

3020 / 2750 INFRA

3028 / 2900 INFRA

Supply voltage at 50 Hz (V)

230 V

230 V

230 V

230 V

* Model weight without options
